HI-700HS II Industrial Equipment
Multi-Labelling High Speed Dynamic Weigh Price Labeller
The HI-700HS ll high speed Weigh Price Labeller offers both increased efficiency and flexibility. Being powered by PC-based software means networking and integration with existing machines and back office systems is straightforward. Dynamic weighing coupled with DIGI’s high speed Signature labeller allows powerful weigh-price-labelling at up to 160ppm.

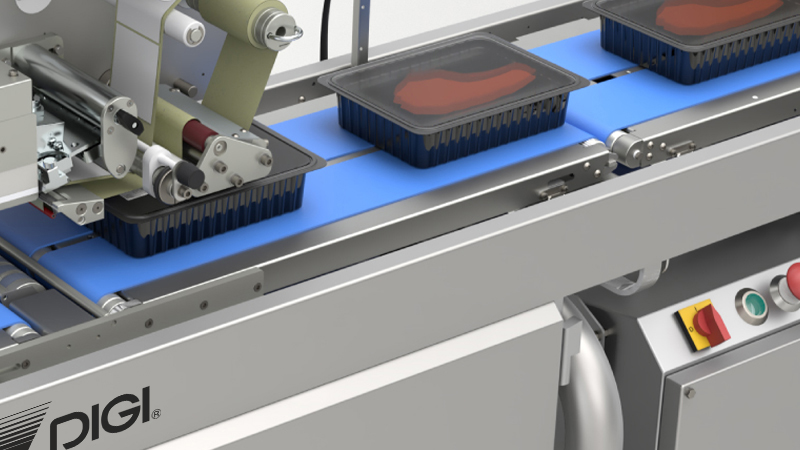

Fast Throughput
The HI-700HS II is designed to meet the fast-throughput required in many factory settings, and this is achieved thanks to features such as a servo belt driven infeed, direct drive conveyor system and DIGI’s Signature labeller.

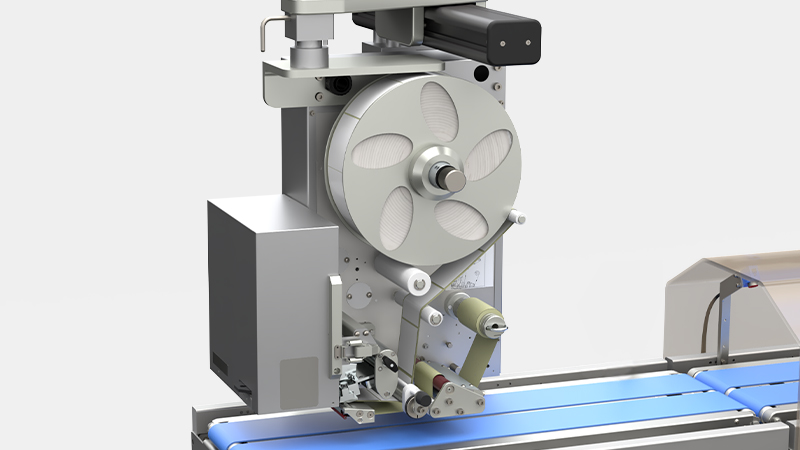

Signature Labeller
The high speed signature labeller provides fast application, large label roll diameter and 300dpi thermal print head. Different label applicators are available.

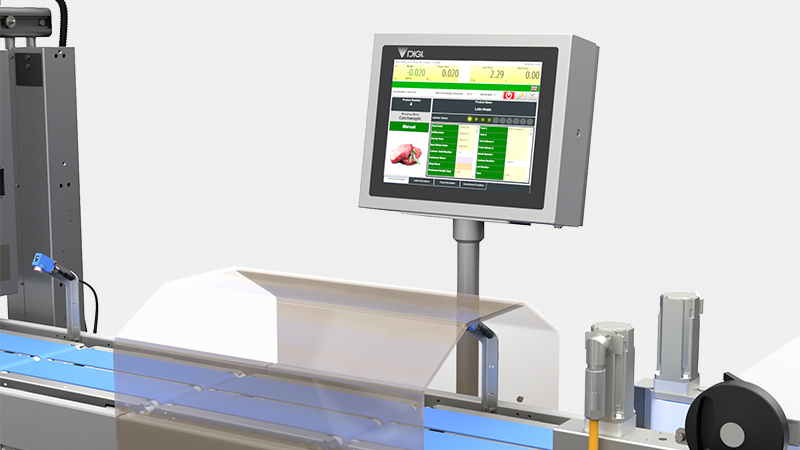

WorldView Operating Software
The HI-700HS ll uses an industrial PC, utilising DIGI’s WorldView software running on Microsoft® Windows® operating system. WorldView provides flexible software control for the automation and performance of DIGI’s full range of Checkweighers and Weigh Price Labellers.

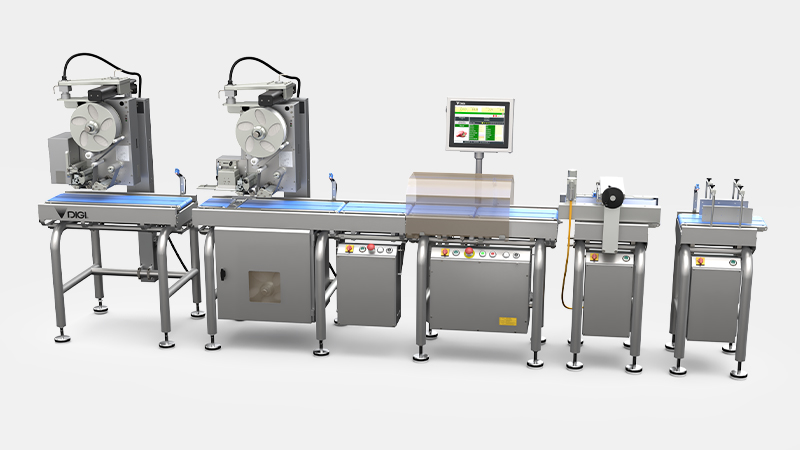

Modular Design
The modular design allows for the addition of extra labelling stations. Add more top and bottom labellers as required, providing a flexible solution to meet your requirements.
Features:
- Fast Throughput: The HI-700HS II is designed to meet the fast-throughput required in many factory settings, and this is achieved thanks to features such as a servo belt driven infeed, direct drive conveyor system and DIGI‘s Signature labeller
- Modular Design: The modular design allows for the addition of extra labelling stations. Add more top and bottom labellers as required, providing a flexible solution to meet your requirements
Performance:
- Product Size: L80-300mm x W40-250mm x H180mm
- Scale Length: 400mm
- Max Capacity: Up to 6kg/1g
- Pack Speed: Up to 160ppm*
- Weighing Modes: Catch Weigh, Fixed Weight/Price, Average (Emark)
- Labelling: Multiple labellers/printers
- Label Size: Width: 30mm to 120mm (base 40mm to 120mm) Height: 28mm to 150mm (base 28mm to 130mm)
Requirements & Peripherals:
- Power Supply: 220-240V(115V Option) 50/60Hz AC Single Phase
- Environment: 0 to +30°C (32-86°F)
- Communication: Ethernet, USB, RS232
- Air Supply: 4-6 bar (50-300lts/min) for connected labeller
Operational Console:
- Display: 15“ XGA a-Si TFT LCD resistive touch
- Software: WorldView (embedded application)
- Operating System: Windows 10 OS
- Language: Multi-lingual Unicode
- Label Design: Professor Label (built in application)
- Database: SQL
- Connectivity: Remote programming and control, Connectivity to meet industry standards, Customisable output data, Interconnectivity to back-office data management
Standard Features:
- Scale Cover: ‘Lift-off ’ formed polycarbonate
- Sensors: Overhead Retro Refl ective, Horizontal Retro Refl ective (option)
- Labellers: Base labeller (option), Pre-printed label applicator (option), Direct protocol Honeywell (PM43/45) (option), Direct protocol Zebra (ZPL II) (option) , Windows printers
- Pack guides: Servo belt driven guides, S100 tall guides
- Conveyor Options: Easy access latch Conveyors, Split blue belts
- Screen: 15“ XGA a-Si TFT LCD resistive touch
- Other: High level warning beacon (option), Rejector (option), Auto labeller height adjustment via PLU (option)
- 3rd Party Interface: Compatible with sleevers, Barcode Scanners/Controllers (option), Base label detection (option), Metal detection (option)
