HI-700 II Industrial Equipment
High Speed Dynamic Weigh Price Labeler
The HI-700 ll Weigh Price Labeler offers increased efficiency and flexibility. Powered by PC-based software, the HI-700 II is easily networked and integrated with existing machines and back office systems. Dynamic weighing coupled with DIGI’s high speed Signature labeller allows processing at a speed of up to 120ppm.
High Productivity
When an additional labelling unit is added, downtime can be further limited by auto-swapping of the labelling stations. Additional labelling units can also operate in ‘ping pong’ mode, alternating application between labellers to maintain higher throughput with larger labels.

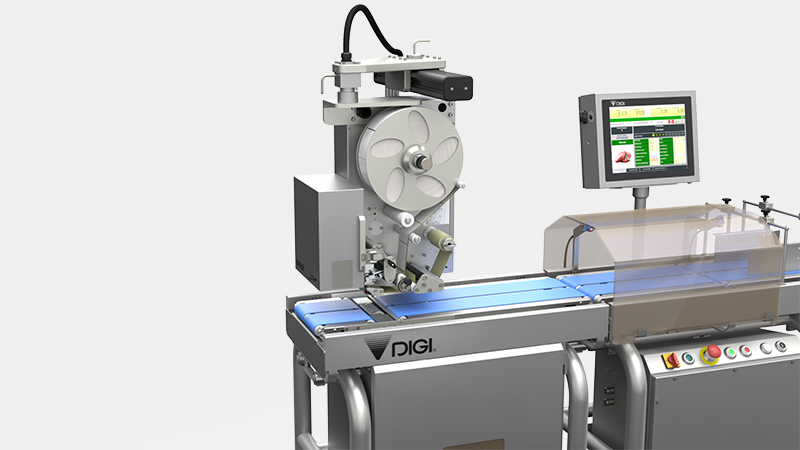

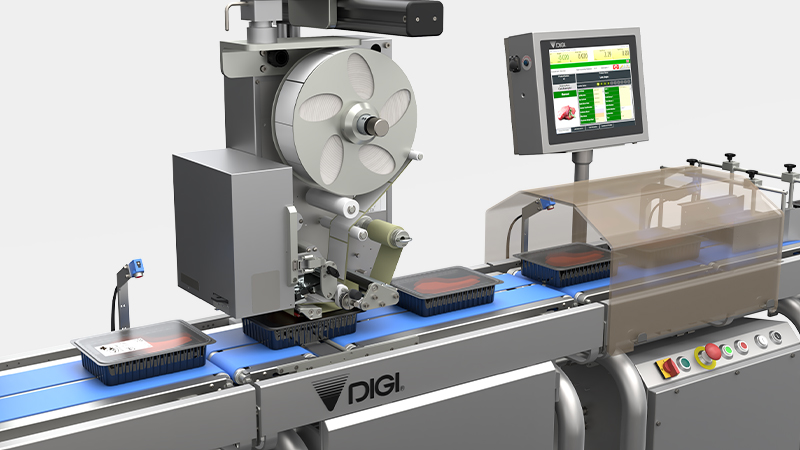

Signature Labeller
The high speed signature labeler provides fast application, large label roll diameter and 300dpi thermal print head. Different label applicators are available.
WorldView Operating Software
The HI-700 ll series uses an industrial PC, utilising DIGI’s WorldView software running on Microsoft® Windows® operating system. WorldView provides flexible software control for the automation and performance of DIGI’s full range of Checkweighers and Weigh Price Labelers.

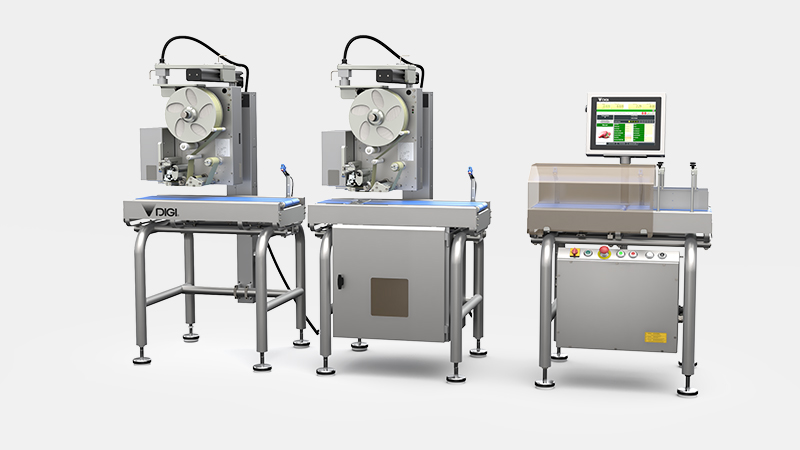

Modular design
The modular design allows for the addition of extra labeling stations. Add more top and bottom labellers as required, providing a flexible solution to meet your requirements.
Features:
- High Productivity: When an additional labelling unit is added, downtime can be further limited by auto-swapping of the labelling stations
- WorldView Operating Software: WorldView provides fl exible software control for the automation and performance of DIGI‘s full range of Checkweighers and Weigh Price Labellers
- Signature Labeller: The high speed signature labeller provides fast application, large label roll diameter and 300dpi thermal print head
Performance:
- Product Size: 475mm Scale L80-300mm x W40-250mm x H180mm, 550mm Scale L80-375mm x W40-250mm x H180mm, 660mm Scale L80-485mm x W40-250mm x H180mm
- Capacity: 6kg/1g, 6kg/2g (660mm scale), 12kg/2g
- Pack Speed: Up to 120ppm*
- Weighing Modes: Catch Weigh, Fixed Weight/Price, Average (Emark)
- Labelling: Multiple labellers/printers
Requirements & Peripherals:
- Power Supply: 220-240V(115V Option) 50/60Hz AC Single Phase
- Environment: 0 to +30°C (32-86°F)
- Communication: Ethernet, USB, RS232
- Air Supply: 4-6 bar (50-300 lts/min) for connected labeller

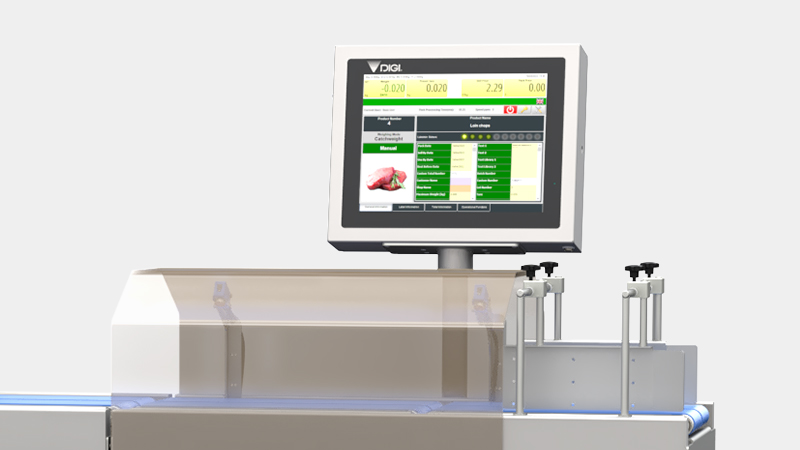

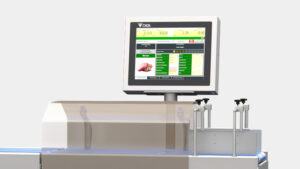

Operational Console:
- Display: 15” Colour TFT LCD sealed resistive touchscreen
- Software: WorldView (embedded application)
- Operating System: Windows 10 OS
- Language: Multi-lingual Unicode
- Label Design: Professor Label (built in application)
- Database: SQL
- Connectivity: Remote programming and control, Connectivity to meet industry standards, Customisable output data, Interconnectivity to back-office data management
Standard Features:
- Scale Length: 475mm, 550mm or 660mm
- Scale Cover: ‘Lift-off’ formed polycarbonate
- Sensors: Overhead Retro Reflective, Horizontal Retro Reflective (option)
- Labellers: Signature, Base labeller (option), Power Lift , Pre-printed label applicator(option), Direct protocol Honeywell (PM43/45) (option), Direct protocol Zebra (ZPL II) (option), Windows printers (option)
- Pack guides: S100 tall guides
- Conveyor Options: 2 or 3 conveyors, Split blue belts, Salami belts (optional), Gravity infeed/outfeed rollers (option)
- Screen: 15“ XGA a-Si TFT LCD resistive touch
- Other: High level warning beacon (option), Rejector (option), Auto labeller height adjustment via PLU (option)
- 3rd Party Interface: Compatible with sleevers, Barcode scanners/controllers (option), Base label detection (option), Metal detection (option)
