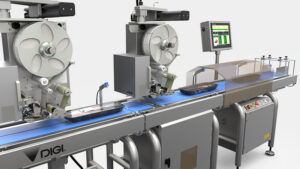

HI-700L II Industrial Equipment
Long Scale Dynamic Weigh Price Labeller.
The HI-700L ll Weigh Price Labeler offers both increased efficiency and flexibility, designed for dynamic weighing and labelling of longer packs at up to 60ppm.
Long Conveyor
The 780mm long conveyor of the HI-700L II allows processing of packs up to 605mm in length, at a speed of up to 60ppm.

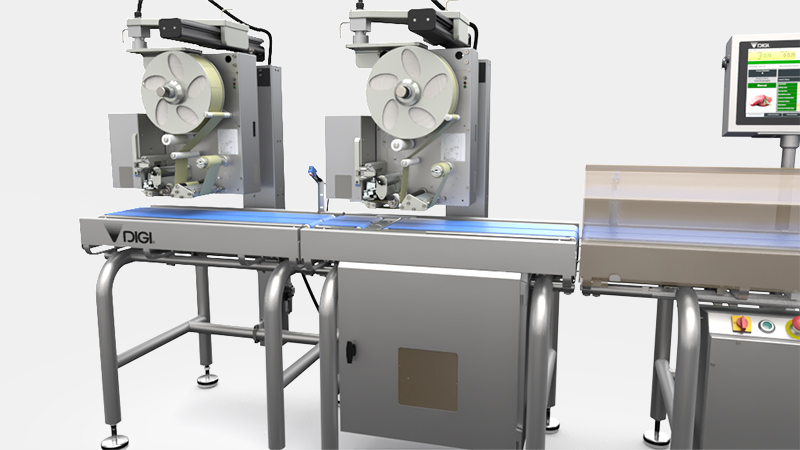

Signature Labeler
The high speed signature labeller provides fast application, large label roll diameter and 300dpi thermal print head. Different label applicators are available.
WorldView Operating Software
The HI-700L ll uses an industrial PC, utilising DIGI’s WorldView software running on Microsoft® Windows® operating system. WorldView provides flexible software control for the automation and performance of DIGI’s full range of Checkweighers and Weigh Price Labelers.

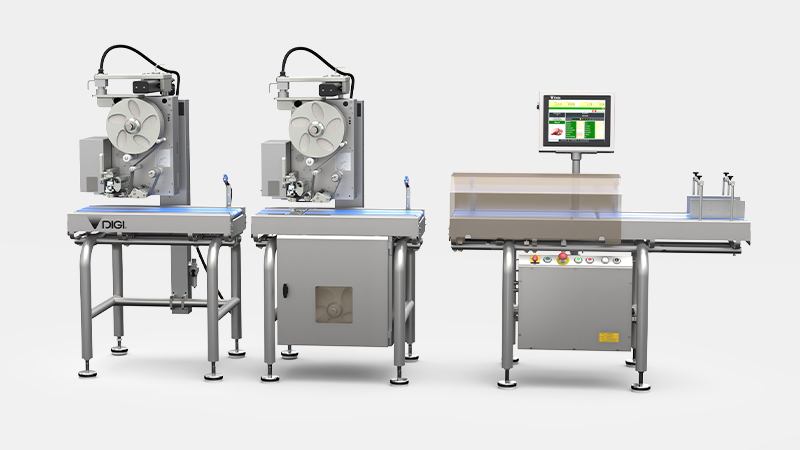

Modular Design
The modular design allows for the addition of extra labeling stations. Add more top and bottom labelers as required, providing a flexible solution to meet your requirements.
Features:
- Long Conveyor: The 780mm long conveyor of the HI-700L II allows processing of packs up to 605mm in length, at a speed of up to 60ppm
- Signature Labeller: The high speed signature labeller provides fast application, large label roll diameter and 300dpi thermal print head. Different label applicators are available
Performance:
- Product Size: L80-605mm x W40-250mm x H180mm
- Scale Length: 780mm
- Max Capacity: Up to 12kg/2g
- Pack Speed: Up to 60ppm*
- Weighing Modes: Catch Weigh, Fixed Weight/Price, Average (Emark)
- Labelling: Multiple labellers/printers
Requirements & Peripherals:
- Power Supply: 220-240V(115V Option) 50/60Hz AC Single Phase
- Environment: 0 to +30°C (32-86°F)
- Communication: Ethernet, USB, RS232
- Air Supply: 4-6 bar (50-300lts/min) for connected labeller

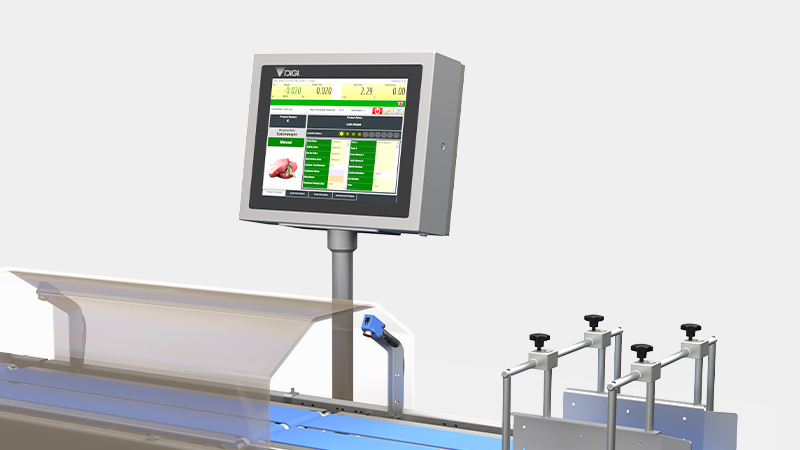

Operational Console:
- Display: 15” Colour TFT LCD sealed resistive touchscreen
- Software: WorldView (embedded application)
- Operating System: Windows 10 OS
- Language: Multi-lingual Unicode
- Label Design: Professor Label (built in application)
- Database: SQL
- Connectivity: Remote programming and control, Connectivity to meet industry standards, Customisable output data, Interconnectivity to back-office data management
Standard Features:
Scale Cover: ‘Lift-off ’ formed polycarbonate
Sensors: Overhead Retro Refl ective, Horizontal Retro Refl ective (option)
Labellers: Signature , Base labeller, Pre-printed label applicator (option), Direct protocol Honeywell (PM43/45) (option), Direct protocol Zebra (ZPL II (option), Windows printers (option)
Pack guides: S100 tall guides
Conveyor Options: Split blue belts, Salami belts (option), Gravity infeed/outfeed rollers (option)
Screen: 15“ XGA a-Si TFT LCD resistive touch
Other: High level warning beacon (option), Rejector (option), Auto labeller height adjustment via PLU (option)
3rd Party Interface: Sleevers (option), Barcode scanners/controllers (option), Base label detection (option), Metal detection (option), Compatible with wrappers
