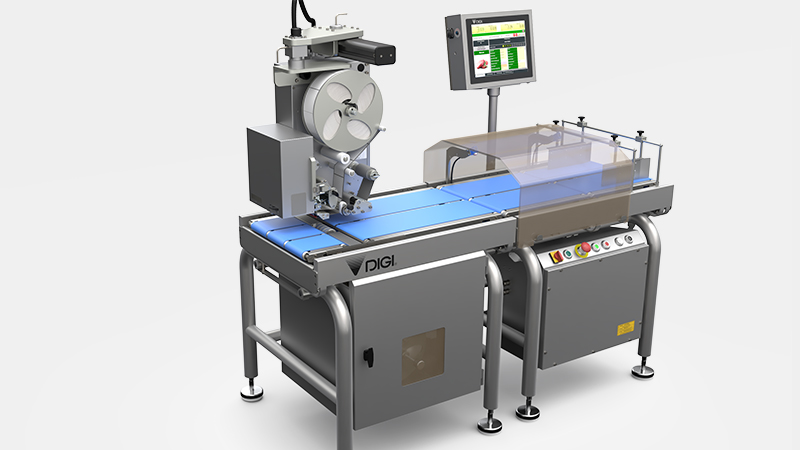

HI-700W II Industrial Equipment
Wide Scale Dynamic Weigh Price Labeler
The HI-700W II Weigh Price Labeler features a wider conveyor, designed for processing wider products at a speed of up to 120ppm.

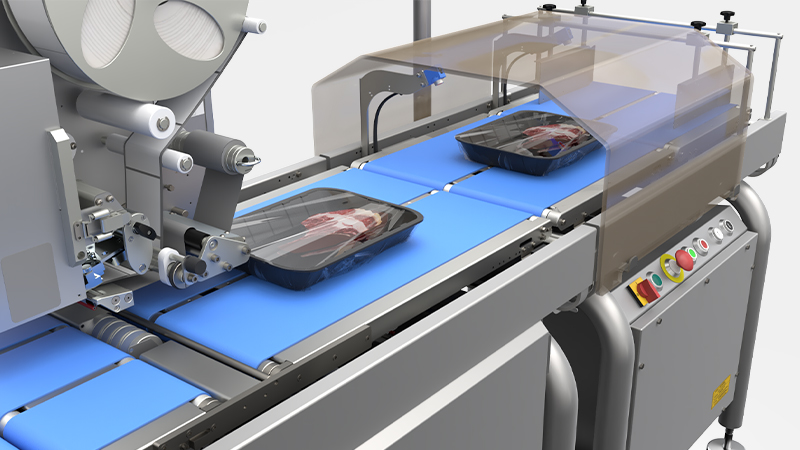

Wide Conveyor
The extra wide conveyor allows the processing of packs up to 400mm wide at a speed of up to 120ppm.

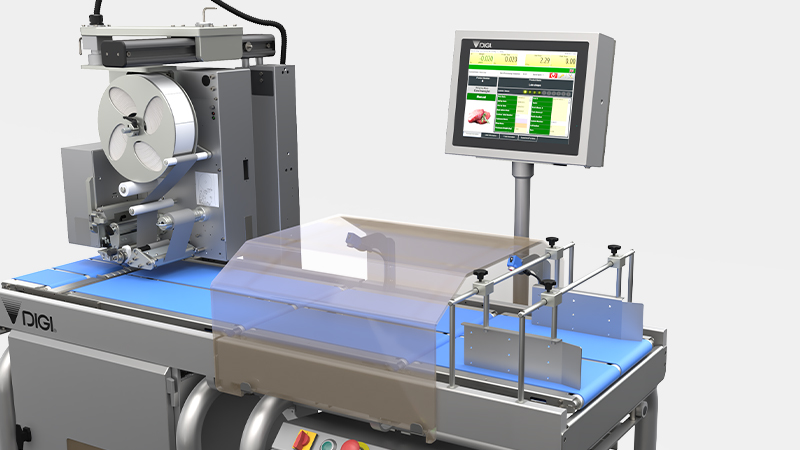

Signature Labeler
The high speed signature labeler provides fast application, large label roll diameter and 300dpi thermal print head. Different label applicators are available.
WorldView Operating Software
The HI-700W ll uses an industrial PC, utilising DIGI’s WorldView software running on Microsoft® Windows® operating system. WorldView provides flexible software control for the automation and performance of DIGI’s full range of Checkweighers and Weigh Price Labellers.

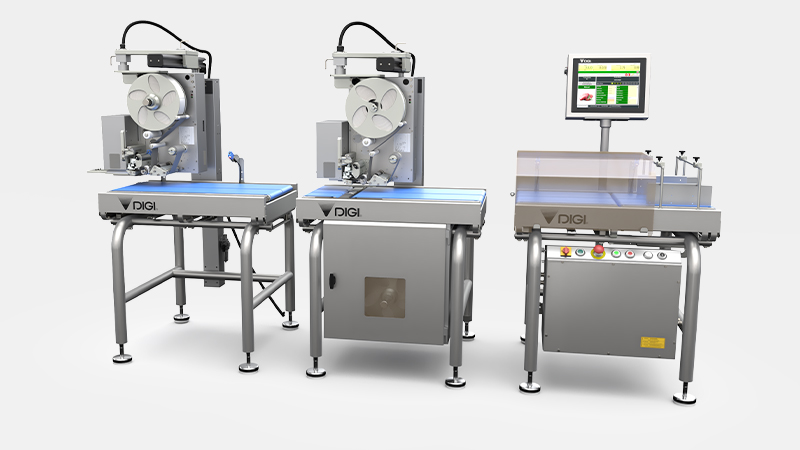

Modular Design
The modular design allows for the addition of extra labeling stations. Add more top and bottom labelers as required, providing a flexible solution to meet your requirements.
Features:
- Wide Conveyor: The extra wide conveyor allows the processing of packs up to 400mm wide at a speed of up to 120ppm
- Modular Design: The modular design allows for the addition of extra labelling stations. Add more top and bottom labellers as required, providing a flexible solution to meet your requirements
Performance:
- Product Size: 475mm Scale – L80-300mm x W40-400mm x H180mm, 660mm Scale – L80-485mm x W40-400mm x H180mm
- Capacity: 6kg/1g 12kg/2g (660mm scale)
- Pack Speed: Up to 120ppm*
- Weighing Modes: Catch Weigh, Fixed Weight/Price, Average (Emark)
- Labelling: Multiple labellers/printers
Requirements & Peripherals:
- Power Supply: 220-240V(115V Option) 50/60Hz AC Single Phase
- Environment: 0 to +30°C (32-86°F)
- Communication: Ethernet, USB, RS232
- Air Supply: 4-6 bar (50-300 lts/min) for connected labeller
Operational Console:
- Display: 15” Colour TFT LCD sealed resistive touch screen
- Software: WorldView (embedded application)
- Operating System: Windows 10 OS
- Language: Multi-lingual Unicode
- Label Design: Professor Label (built in application)
- Database: SQL
- Connectivity: Remote programming and control, Connectivity to meet industry standards, Customisable output data, Interconnectivity to back-office data management
Standard Features:
- Scale Length: 475mm or 660mm
- Scale Cover: ‘Lift-off ’ formed polycarbonate
- Sensors: Overhead Retro Refl ective, Horizontal Retro Refl ective (option)
- Labellers: Signature, Base labeller (option), Power Lift , Pre-printed label applicator(option), Direct protocol Honeywell (PM43/45) (option), Direct protocol Zebra (ZPL II) (option), Windows printers (option)
- Pack Guides: S100 tall guides
- Conveyor Options: 2 or 3 conveyors (3 available on 475mm scale), Std blue belts, Gravity infeed/outfeed rollers (option)
- Screen: 15“ XGA a-Si TFT LCD resistive touch
- Other: High level warning beacon (option), Auto labeller height adjustment via PLU (option, Rejector (option)
- 3rd Party Interface: Sleevers (option), Barcode scanners/controllers (option), Base label detection (option), Metal detection (option)
