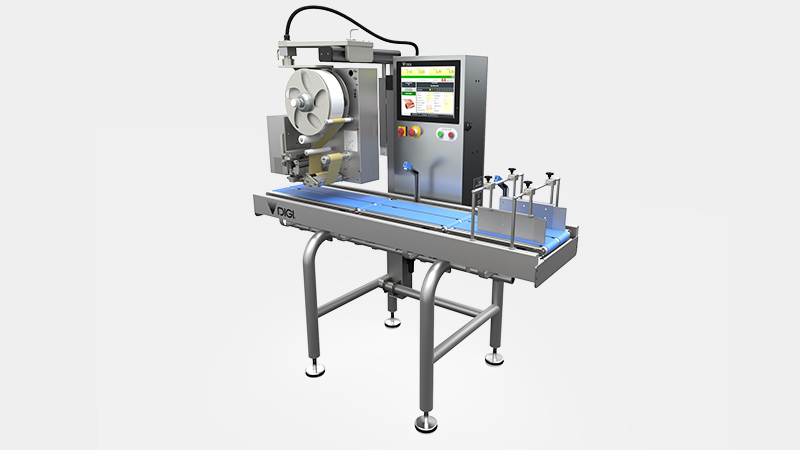

LI-700 II Industrial Equipment
Dynamic Weigh-Price Labeller.
The LI-700 ll Weigh Price Labeler is designed for medium productivity environments, processing up to 65ppm. Featuring a single frame design running PC-based software, networking and integration with existing machines and back office systems is straightforward.
Compact Design
The LI-700 II’s single frame design is compact, taking up 1560mm x 695mm of floor space, making it ideal for production lines where space is limited.
Signature Labeler

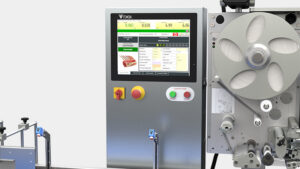

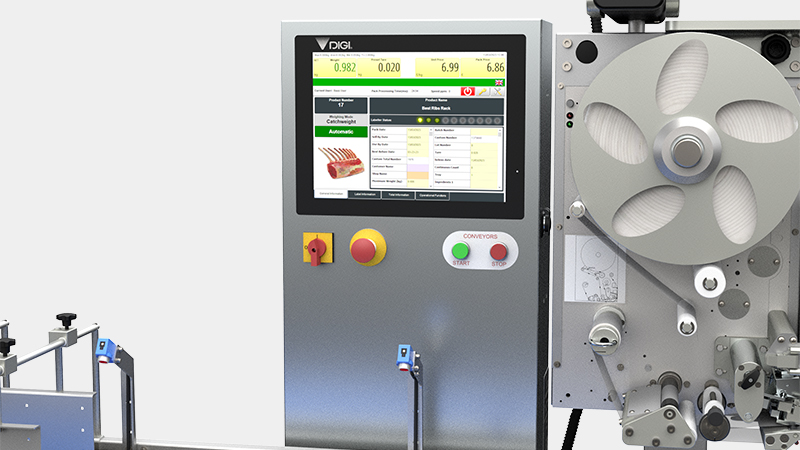

The high speed signature labeler provides fast application, large label roll diameter and 300dpi thermal print head. Different label applicators are available.
WorldView Operating Software
The LI-700 ll uses an industrial PC, utilising DIGI’s WorldView software running on Microsoft® Windows® operating system. WorldView provides flexible software control for the automation and performance of DIGI’s full range of Checkweighers and Weigh Price Labellers.
Features:
- Compact Design: The LI-700 II‘s single frame design is compact, taking up 1560mm x 695mm of fl oor space, making it ideal for production lines where space is limited
- Medium Productivity: The LI-700 ll is designed for medium productivity environments, processing up to 65ppm. Featuring a single frame design running PC-based software, networking and integration with existing machines and back office systems is straightforward
Performance:
- Product Size: 475mm Scale L80-300mm x W40-250mm x H180mm (Option: 660mm Scale L80-485mm x W40-250mm x H180mm)
- Capacity 6kg/1g (2g min on 660mm scale), 10kg/2g
- Pack Speed Up to 65ppm*
- Weighing Modes Catch Weight, Fixed Weight/Price, Average(Emark)
- Labelling Multiple labellers/printers
Requirements & Peripherals:
- Power Supply 220-240V(115V Option) 50/60Hz AC Single Phase
- Air Supply 4-6 bar (50-300 lts/min)
- Environment 0°C to +30°C (32-86°F)
- Communication Ethernet, USB, RS232
Operational Console:
- Display 15“ XGA a-Si TFT LCD Resistive touch
- Software WorldView (Embedded Application)
- Operating System Windows 10 OS
- Language Multi-lingual Unicode
- Label Design Professor Label (built in application)
- Database SQL
- Connectivity Remote programming and control
- Connectivity to meet industry standards
- Customisable output data
- Interconnectivity to back-office data management
Standard Features:
- Scale Length 475mm or 660mm
- Scale Cover ‘Lift-off ’ formed Polycarbonate (option)
- Sensors Overhead Retro Refl ective
- Horizontal Retro Refl ective (option)
- Labellers Signature, Casette (option), Base labeller, Direct protocol Honeywell
- (PM43/45) (option), Direct protocol Zebra (ZPL II) (option), Windows printers
- Pack guides S100 tall guides

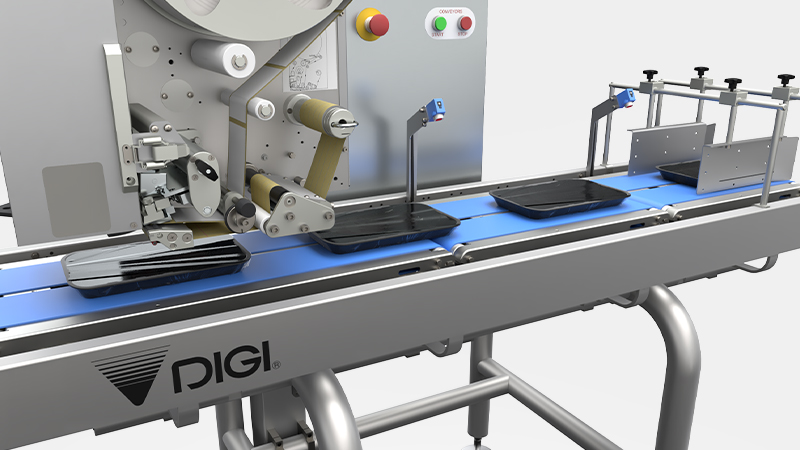

- Conveyors Split blue belts, Salami belts (option), Gravity infeed/outfeed rollers (option)
- Other High level warning beacon (option), Rejector (option)
- 3rd Party Interface Compatible with sleevers, Barcode scanners/controllers base (option)
- Label detection (option), Metal detection (option), SRX Wrapper integration (option)
