Features:

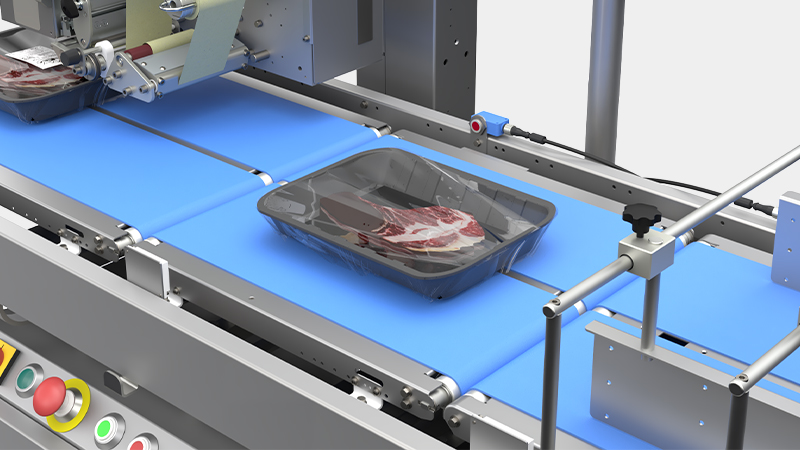

• Wide Conveyors: The 400mm wide conveyor allows the processing of packs up to 400mm wide at a speed of up to 80ppm
• Signature Labeller: The high speed signature labeller provides fast application, large label roll diameter and 300dpi thermal print head. Different label applicators are available

Performance:

• Product Size: L80-300mm x W40-400mm x H180mm
• Scale Length: 475mm
• Capacity: 6kg/1g (or greater), 12kg/2g (or greater)
• Pack Speed: Up to 80ppm*
• Weighing Modes: Catch Weigh, Fixed Weight/Price, Average (Emark)
• Labelling: Single top labeller

Requirements & Peripherals:

• Power Supply: 220-240V(115V Option) 50/60Hz AC Single Phase
• Air Supply: 4-6 bar (50-300 lts/min)
• Environment: 0 to +30°C (32-86°F)
• Communication: Ethernet, USB, RS232

Operational Console:

• Display: 15” Colour TFT LCD sealed resistive touch screen
• Software: WorldView (embedded application)
• Operating System: Windows 10 OS
• Language: Multi-lingual Unicode
• Label Design: Professor Label (built in application)
• Database: SQL
• Communication: Remote programming and control, Connectivity to meet industry standards, Customisable output data, Interconnectivity to back-office data management

Standard Features:

• Scale Width: 400mm
• Scale Cover: ‘Lift-off’ formed polycarbonate
• Sensors: Overhead Retro Reflective, Horizontal Retro Reflective (option)
• Labellers: Signature top, Direct protocol Honeywell (PM43/45) (option), Direct protocol Zebra (ZPL II) (option), Windows printers (option)
• Pack guides: S100 tall guides
• Conveyor: Split blue belts, Gravity infeed/outfeed rollers (option)
• Screen: 15“ XGA a-Si TFT LCD Resistive touch
• Other: High level warning beacon (option)
• 3rd Party Interface: Compatible with sleevers, Barcode scanners/controllers (option), Metal detection (option)
